Name: BB Series One Way Clutch Bearing BB 25-2K-K 25mm Bore 52mm OD
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BB 25-2K-K
Price: 6.30 USD
Availability: InStock

บ้าน ผลิตภัณฑ์แบริ่งคลัตช์ทางเดียว

BB Series One Way Clutch Bearing BB 25-2K-K 25mm Bore 52mm OD

รายละเอียดสินค้า:

สถานที่กำเนิด:	JIANGSU, จีน
ชื่อแบรนด์:	SUMA or OEM
หมายเลขรุ่น:	BB 25-2K-K

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	2
ราคา:	$6.30-6.80

ติดต่อ

รายละเอียดสินค้า

พิมพ์:	บีบี ซีรีย์	คะแนนความแม่นยำ:	P0, P6
ประเภทซีล:	ที่ปิดผนึก	วัสดุ:	GCR15
เส้นผ่าศูนย์กลางด้านนอก:	52 มม.	ขนาดเบื่อ:	25 มม.
ความจุแรงบิด:	78 นาโนเมตร	Max Overrunning (ภายใน):	2500 รอบ/นาที
Max Overrunning (ด้านนอก):	1400 รอบ/นาที	แรงบิดลาก:	0.017 n*m
อุณหภูมิการทำงาน:	-30°C ถึง +100°C	น้ำหนัก:	150 น.
โหลดแบริ่ง (CR):	10700 n	โหลดแบริ่ง (COR):	6300 n
ขนาดกุญแจ:	8x5x15 (ด้านใน), 6x4x15 (ด้านนอก)
เน้น:	25mm one way clutch bearing , 52mm OD clutch bearing , BB Series one way bearing

One Way Clutch Bearing BB 25-2K-K Cam Clutch Industrial Bearing

Product Specifications

Attribute	Value
Applicable Industries	Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining, Other
Type	BB Series
Precision Rating	P0, P6
Seals Type	Sealed
Material	GCr15
Outer diameter	52 mm
Bore size	25 mm
Torque Capacity	78 Nm
Package	Single box or as your requirements
Port	Shanghai, Ningbo
Size	Standard Size
Delivery time	10-15 Days
OEM	Accept

Product Overview

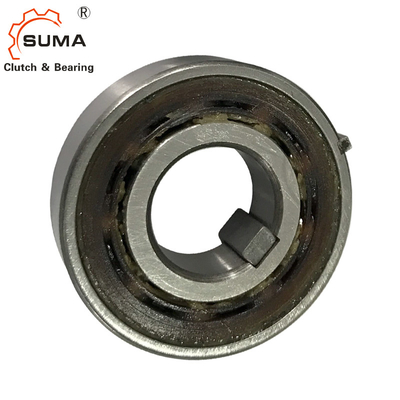

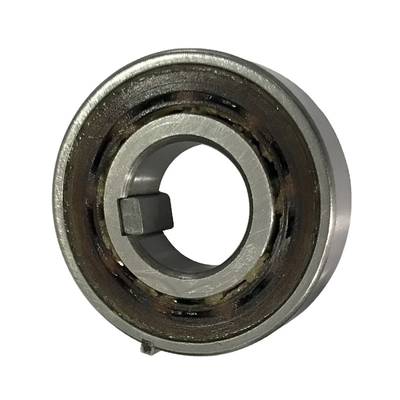

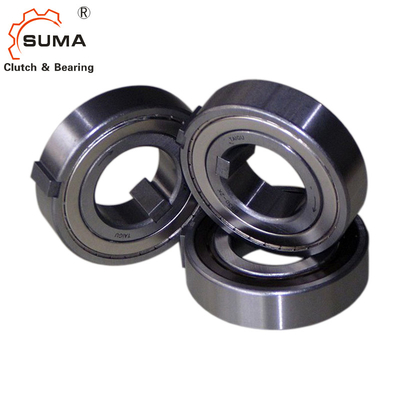

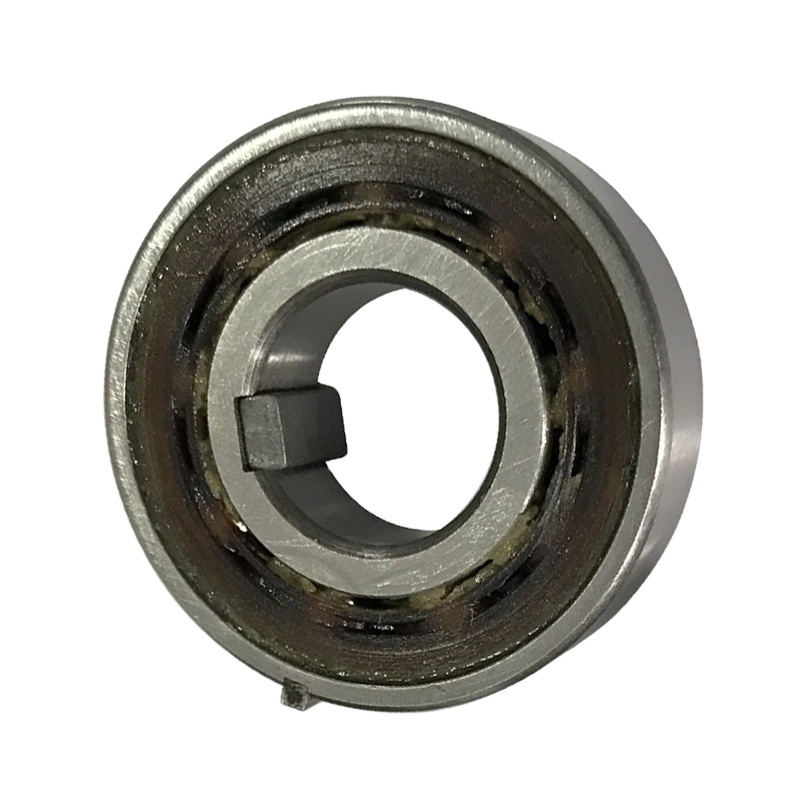

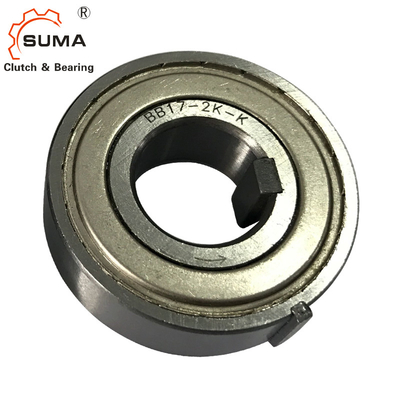

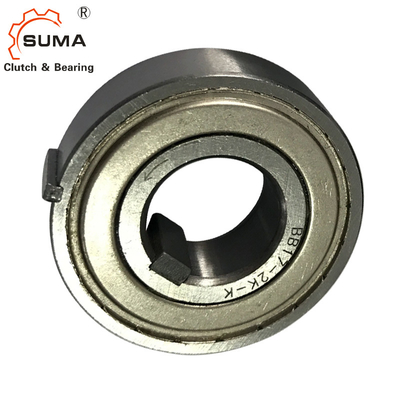

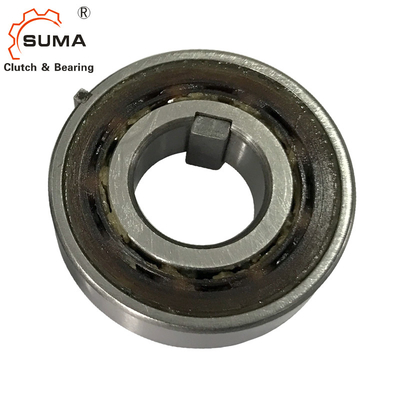

The BB Series One Way Clutch Bearing BB 25-2K-K is a high-performance cam clutch industrial bearing designed for demanding applications across various industries. This precision-engineered component features keyways on both inner and outer races for secure installation.

Technical Specifications

Item	BB 2K-K
Material	GCr15
Outer diameter	52 mm
Bore size	25 mm
Torque Capacity	78 Nm
Max. Overrunning (inner race)	2500 r/min
Max. Overrunning (outer race)	1400 r/min
Port	Shanghai; Ningbo
Delivery time	10-15 days

Installation & Usage Features

Designed for press fit installation with keyways on both inner and outer races
Includes keys shipped together with Cam Clutch ("-K" designation)
Maintain correct interference dimensions at shaft and housing for optimal performance
Dust seal protection against particles of 0.25mm and over
Arrow on inner race indicates direction of engagement
Use appropriate press tool for installation - do not hammer or apply shock
Operating temperature range: -30°C to +100°C
Housing must have sufficient strength to withstand press fitting pressure

Dimensions and Capacities

Comprehensive dimensional data and load capacities available in the technical specifications table. All models are dimensionally interchangeable with competitors.

Tolerance Specifications

Detailed shaft and housing tolerance requirements are provided for precise installation and optimal performance.

Lubrication Guidelines

Pre-greased before delivery - no additional lubrication required before use
For oil lubrication systems, ensure continuous internal oil application
Do not use greases or lubricants with EP additives

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) specializes in manufacturing high-quality cam clutches, one way bearings, and industrial clutch solutions. Our commitment to "Best Quality, Best Price, Fast Delivery, Best Service" ensures customer satisfaction.
